Punched Façade

Punched-facade-01 Punched-facade-03

/// Punched Façade

An Idea based on integrating one of the technologies that had been used in car industry and bring it to façade construction world, by manufacturing a unitised façade element, which is based on the same principles used in punching car parts. The size for the new façade units will be based on the required design as equal unites. The new façade unit will be able to offer the main required façade functions in matter of surface, insulation and transparency as well additional functions could be realised.

Punched-facade-02

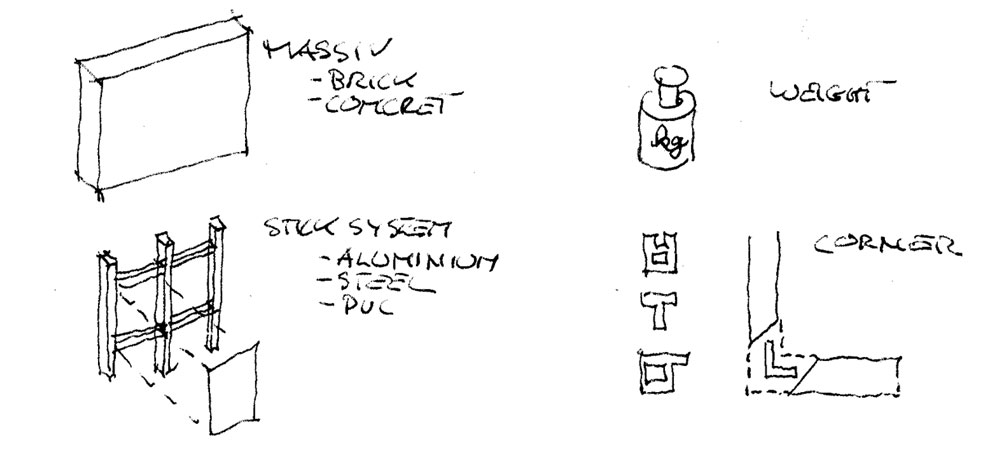

Building envelopes and the difficulties

Punched-facade-07

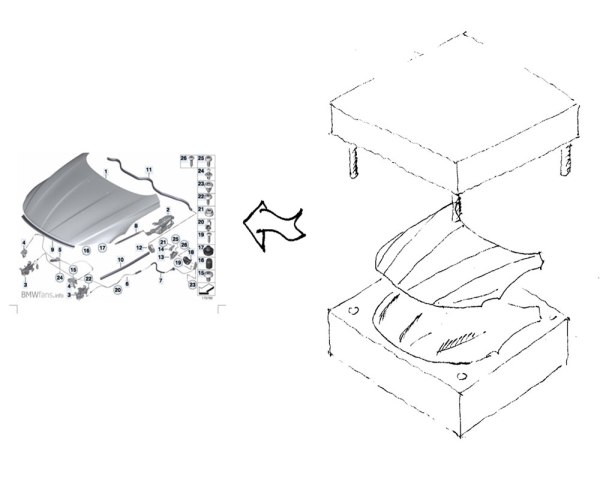

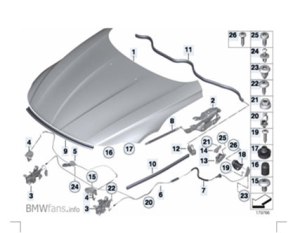

The punched surface at car industry


Punched façade

Punched-facade-05

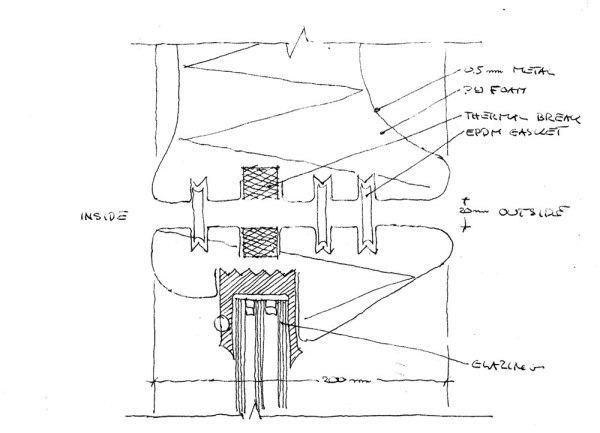

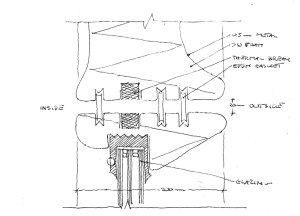

Concept Detail

Punched-facade-04

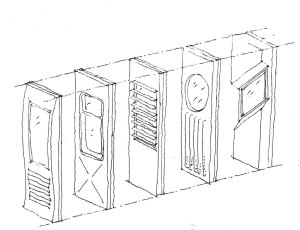

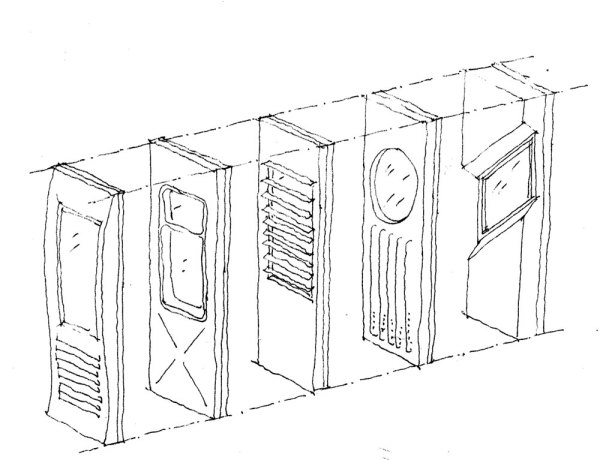

Various layouts and function
